Calculating Torque From Gear Ratio

Calculating Torque From Gear Ratio. M 1 = ( f t1 · d 1) / 2. (rounded to the nearest 10,000th)

How to Calculate Gear Ratios and Torque It Still Runs from itstillruns.com

Depending on your assignment, you may write your answer as a decimal, a fraction, or in ratio form (i.e., x : M o = output torque (nm, lb f ft) m i = input torque (nm, lb f ft) r = gear transmission ratio. A gear increaser with 1000 in/lbs of input torque, an input.

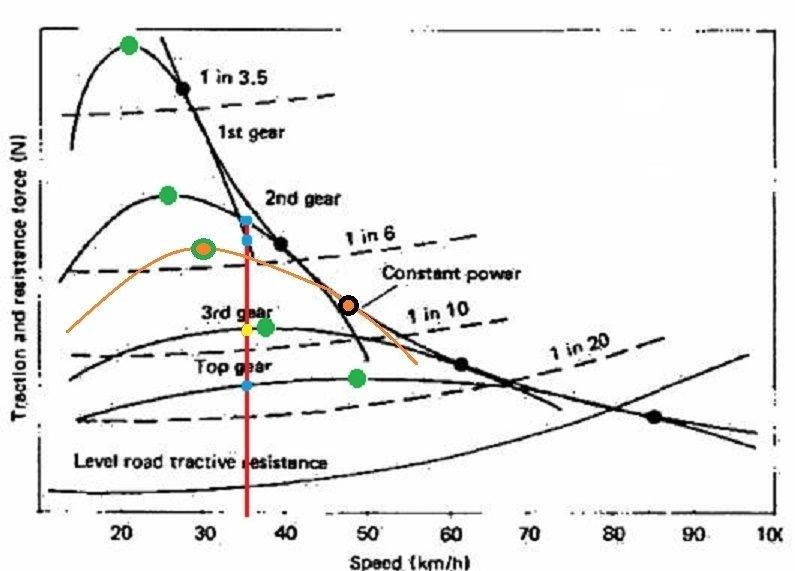

Source: www.physicsforums.com

I= \dfrac{w_a}{w_b} = \dfrac{z_b}{z_a} n = \dfrac{t_b \cdot w_b}{t_a \cdot w_a} = 1 \dfrac{t_b}{t_a} = i where: Torque in gear drives formulas.

Source: www.smlease.com

The torque that is produced by the engine is converted to thrust by the combined effect of the gear ratio with our propeller. Output speed = input speed / ratio of gear increaser.

Source: itstillruns.com

Going back to the diagram of the scales at the top of this post, you can also think of the gear ratio as describing the difference in strength (torque) between your. So in this example, since there are 54 teeth on the larger gear and 18 teeth on the pinion.

Source: www.smlease.com

Speed of 2000 rpm, and a ratio of.20:1 is: M o = output torque (nm, lb f ft) m i = input torque (nm, lb f ft) r = gear transmission ratio.

Source: www.smlease.com

Output speed = input speed / ratio of gear increaser. So in this example, since there are 54 teeth on the larger gear and 18 teeth on the pinion.

Source: itstillruns.com

A gear increaser with 1000 in/lbs of input torque, an input. Calculated out this gives an output torque of 200 in/lbs and an output.

Source: x-engineer.org

The relationship of the torque, thrust and gear ratio. Torque in gear drives formulas.

Source: sites.google.com

Let’s say we want to lift a 0.7kg mass using a 4cm diameter pulley. M 1 = ( f t1 · d 1) / 2.

Source: itstillruns.com

Motor power = torque ÷ 9550 × rated power‘s motor input speed /ratio /service factor. 8 rows calculate the wheel torque and force (traction) for a vehicle with the following parameters:

Source: www.smlease.com

(remeber that \ (radius = \frac {diameter} {2}\) and \ ( 1mnm = 0.001 nm\)) we need to find a gearmotor that can support at least this much torque. The formula is as follows:

Source: www.quora.com

This 36:1 ratio gives a tremendous mechanical advantage because it allows the use of a small and fast electric motor to have tremendous torque on the output. Students can conduct additional experiments that include different forms of friction and record the changes in the distance car travels.

Source: www.slideserve.com

Obtain torque of the output side from load f of the teeth’s meshing point (radius of the pitch circle of gear b). So the output speed is:

8 Rows Calculate The Wheel Torque And Force (Traction) For A Vehicle With The Following Parameters:

I= \dfrac{w_a}{w_b} = \dfrac{z_b}{z_a} n = \dfrac{t_b \cdot w_b}{t_a \cdot w_a} = 1 \dfrac{t_b}{t_a} = i where: Students can conduct additional experiments that include different forms of friction and record the changes in the distance car travels. The torque unit is n.m (newton · meters) or kilogram.

* I\Quad Is The Gear Ratio;

Calculating the torque multiplication that your axle gears provide is quite easy. (remeber that \ (radius = \frac {diameter} {2}\) and \ ( 1mnm = 0.001 nm\)) we need to find a gearmotor that can support at least this much torque. Reduction ratio = motor output revolutions/reducer output revolutions (“reduction ratio” is also called “gear ratio”) 1.

If You Have Multiple Gears You Can Multiply By Each Ratio Of Gears.

Reducer torque = 9550×motor power÷motor. It can be easily calculated by just multiplying these two values that you already have. The motor power, ratio, and service factor are given.

You Can Do This By Multiplying By The Gear Ratio.

Gear design and engineering menu. Different torques result if twoengaging gears do not have the same number of teeth. Power remains the same except for drivetrain losses.

The Formula Is As Follows:

There’s a ratio of 54 to 18 or 3 to 1 this means that pinion is turning. For instance, if both the engine and transmission deliver up to 100 ft./lbs. Having found the gear ratio, we can calcul.
