How To Calculate Magnetic Heading. In this video i show how to find the variation on the sectional map and calculate the magnetic heading. The true course is the aircraft path over the ground referenced to true north.

Compasses (Part One) from www.flightlearnings.com

The formulas are right on the e6b if you forget. On the b747 comes from the magnetic heading reference systems. Then i show how to determine the deviation and calcul.

Source: www.pinterest.com

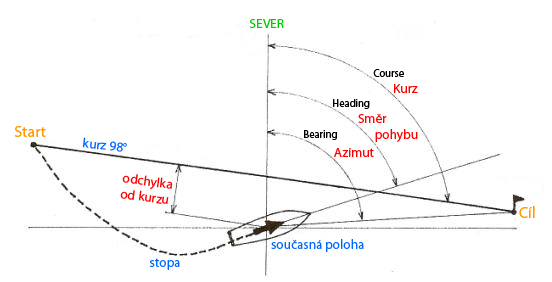

Basic principles of heading calculation. According to the phak, “the difference between true and magnetic directions is called variation.

Source: airplaneacademy.com

From true to magnetic, and only when switching from true to magnetic, east is least. How do you calculate magnetic heading?

Source: www.wikihow.com

Then i show how to determine the deviation and calcul. So you’ll only need four wires to hook it up to an arduino promicro.

Source: www.duncansteel.com

The difference is due to the magnetic north pole and geographic north pole being hundreds of miles apart. 9.5), as it is the case in eastern canada, the magnetic course mc of the boat can be calculated from its true course tc measured on the chart, by applying the formula

Source: blog.mytimezero.com

Magnetic heading 0° means 005° true heading. Each tiny increment is one degree.

Source: www.lediouris.net

In this video i show how to find the variation on the sectional map and calculate the magnetic heading. How do you calculate magnetic heading?

Source: www.youtube.com

In this video i show how to find the variation on the sectional map and calculate the magnetic heading. The last option is 172˚ which is exactly what we determined for our purposes here.

Source: www.quora.com

The bearings or cardinal points of the compass are as follows: The geographic north pole around which the earth rotates is not in.

Source: www.slideshare.net

This will give you a magnetic heading. • when magnetic north m is west of the true north (variation v is west;

Source: www.blondsinaviation.com

Magnetic heading is 23 degrees in an area where east decl. Magnetic heading is given as a bearing from magnetic north.

Source: aviation.stackexchange.com

Note that 027 magnetic from our original question aligns with 035 true. The method for converting gauss units to a compass heading is provided below.

Source: josm.openstreetmap.de

The formulas are right on the e6b if you forget. The image above reminds us of the steps in the correct order.

This Represents 8 Degrees East Variation.

The second is 187˚, well, that is the true heading, but the question asks for our magnetic heading. The difference between the two results from a crosswind, which may require you to fly a different true heading to achieve your true course. While heading is an angle or direction where you are currently navigating in.

One Thing To Keep In Mind With Wiring Your Magnetometer Is That It Has A.

To get the true heading (th) you need to add magnetic variation to magnetic heading (mh). The hmc5883l magnetometer communicates over an i2c bus, and will run off between 3 to 5 volts. January, 15, 2022 by kyle boas.

The Vector Used To Find Heading (Or Orientation In The General Case) Is Denoted By ~X.

The formulas are right on the e6b if you forget. So you’ll only need four wires to hook it up to an arduino promicro. The last option is 172˚ which is exactly what we determined for our purposes here.

Think Of The Compass As A Circle, Divided Equally Into 360 Parts.

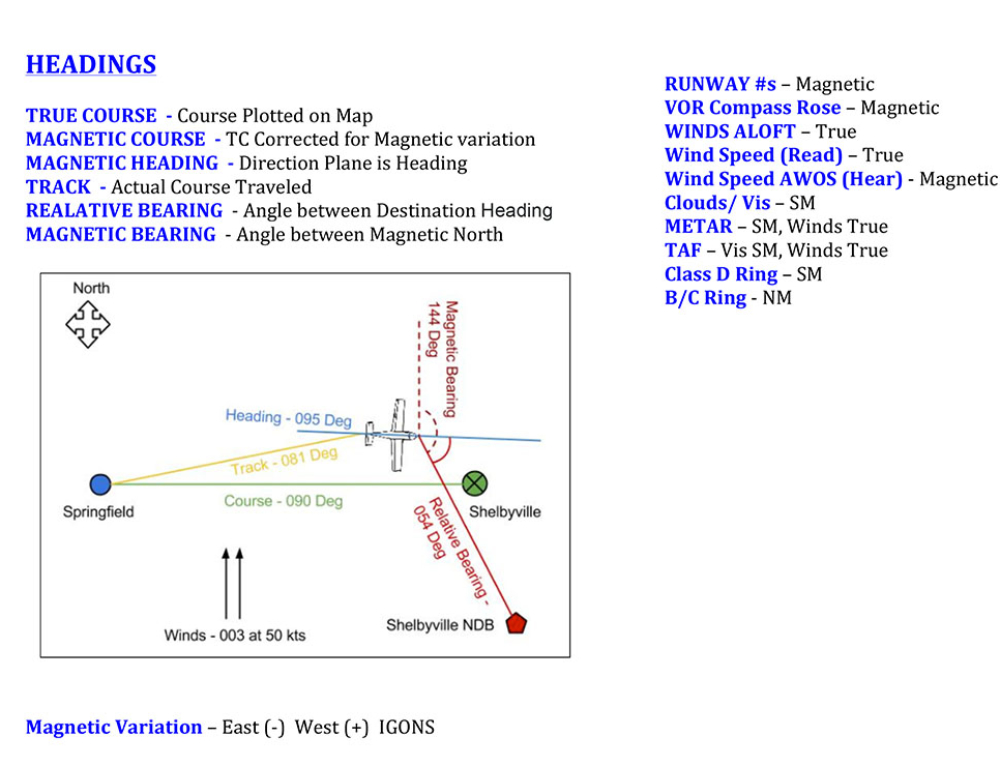

Based upon the isogonic lines on your sectional (the purple dashed lines labeled 5°w, 3°e, etc). Note that 027 magnetic from our original question aligns with 035 true. The vector must have a known (or measurable) direction relative to the earth (e) and for now we assume that also the length is known, such that xe is known.

From The Question We See The First Possible Magnetic Heading It Gives Us Is 349˚ And That Is Way Off.

Basic principles of heading calculation. In slaved mode, the output from the field sensor is synchronized with the ins platform heading output. From true to magnetic, and only when switching from true to magnetic, east is least.
